Square and Rectangular Paper Bowl Forming Machine

Customization:	Available
Warranty:	1 Year
Applicable Objects:	Beverage

Basic Information

Model NO.

FW

Cup Size(Ounce)

2-22oz

Speed

60-80pcs/min

Required Paper

Single and Double Side PE Coated Paper

Automation

Automatic

Certification

CE

Average Power

10kw

Total Weight

4500kg

Air Supply

0.4MPa, 0.4m³/Min

Transport Package

Wooden Case

Specification

2550x1760x1700mm

Production Capacity

500sets/Year

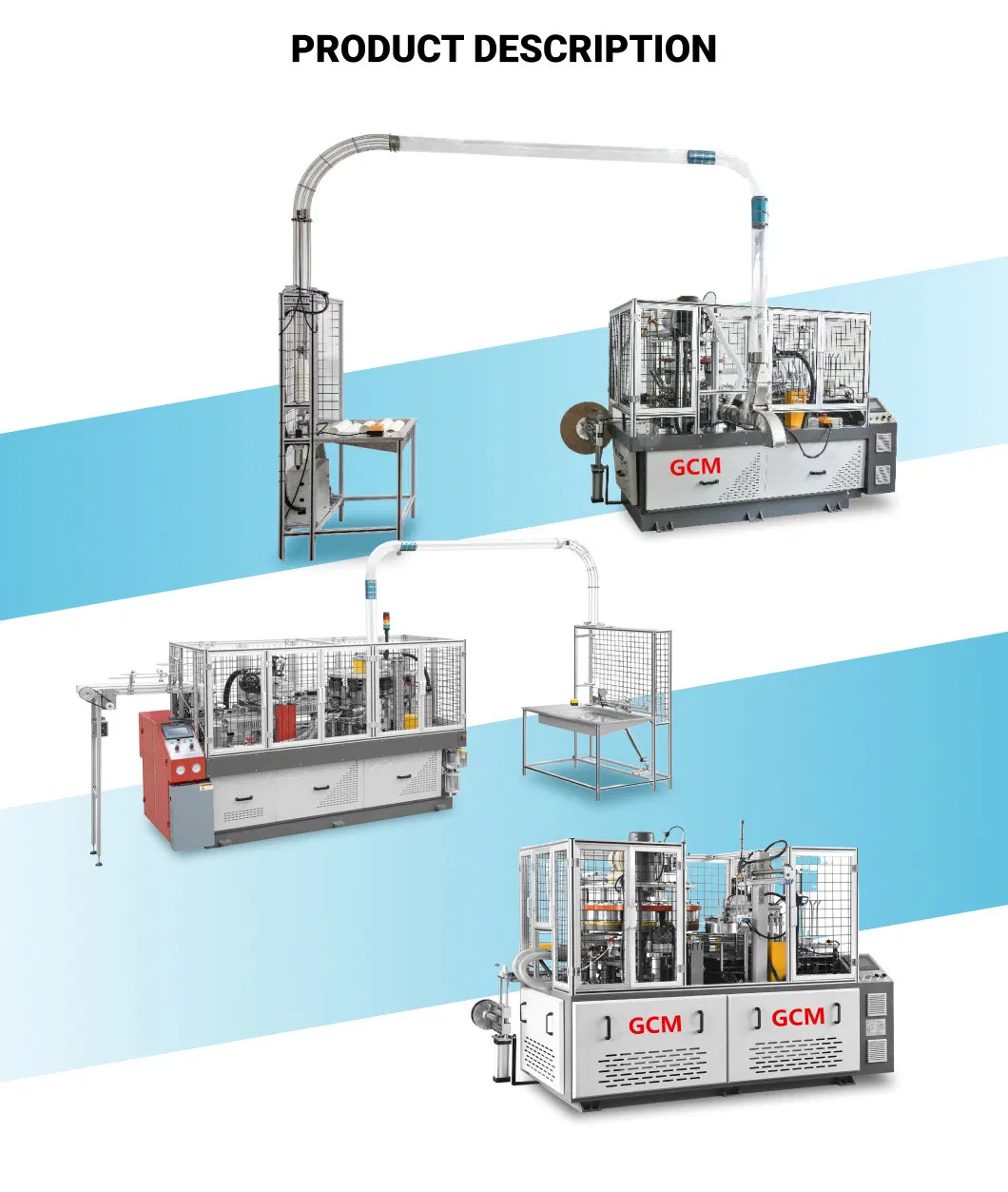

Product Description

Square Paper Bowl Making Machine & Square Cup Forming Machine

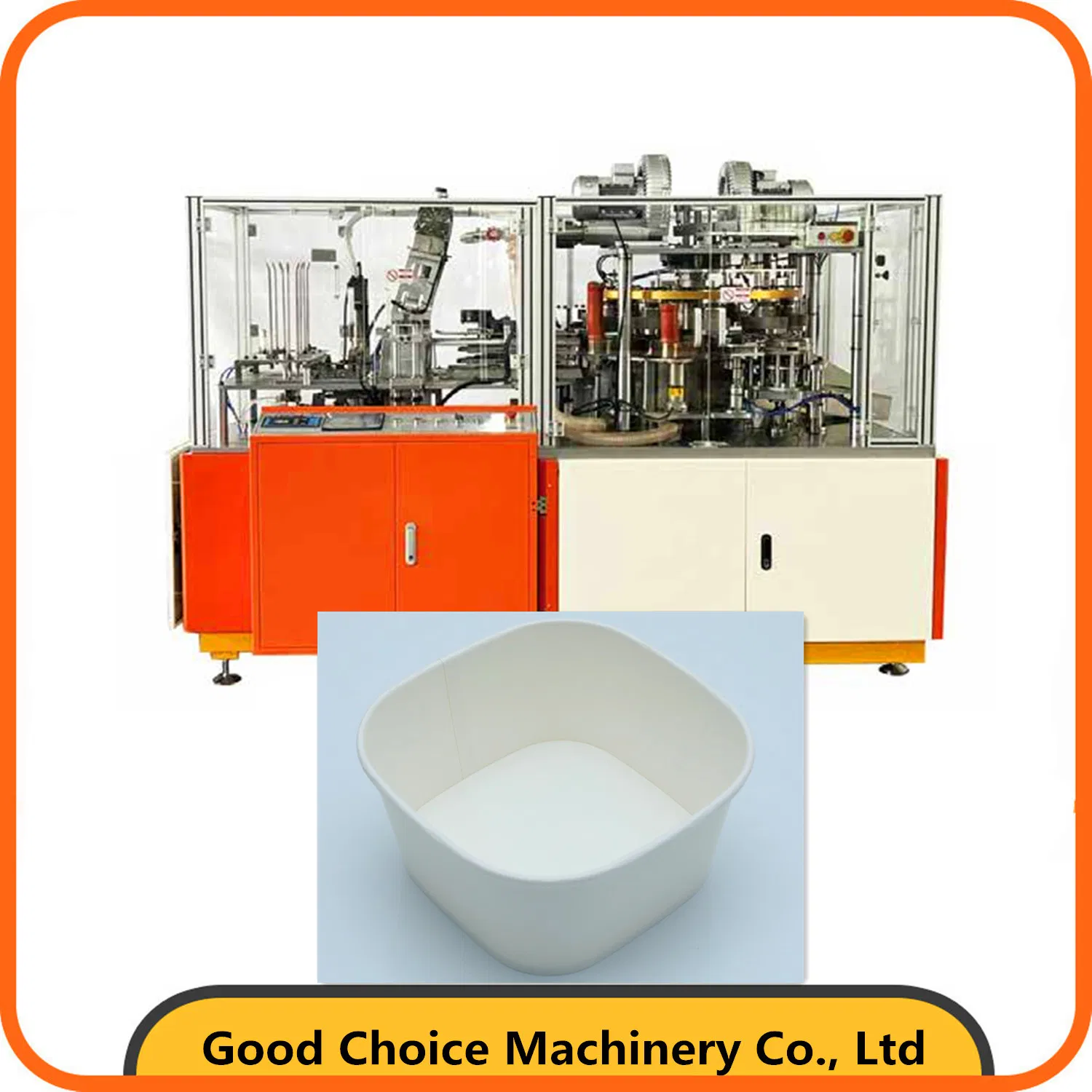

Square and Rectangular Paper Bowl Forming Machine

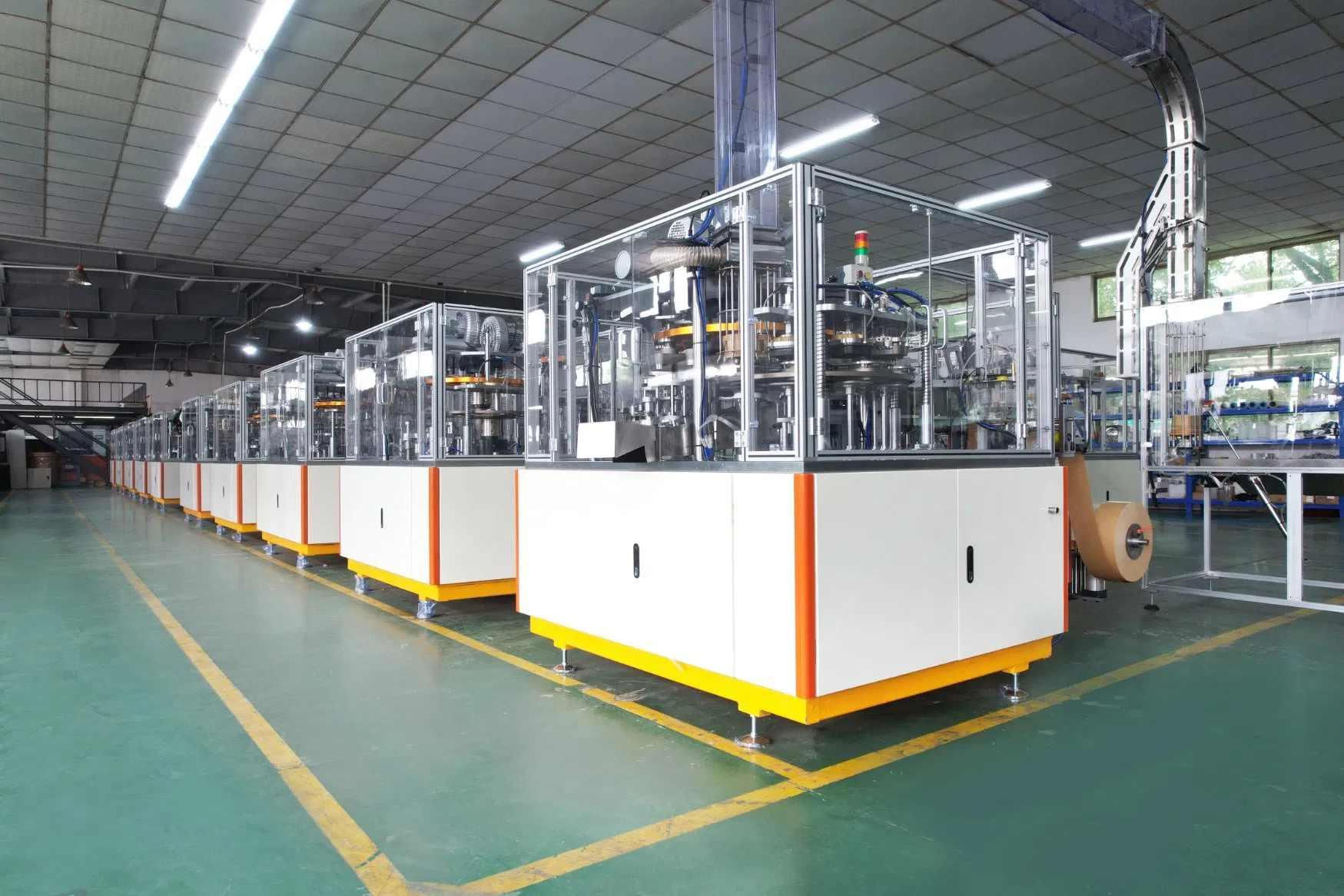

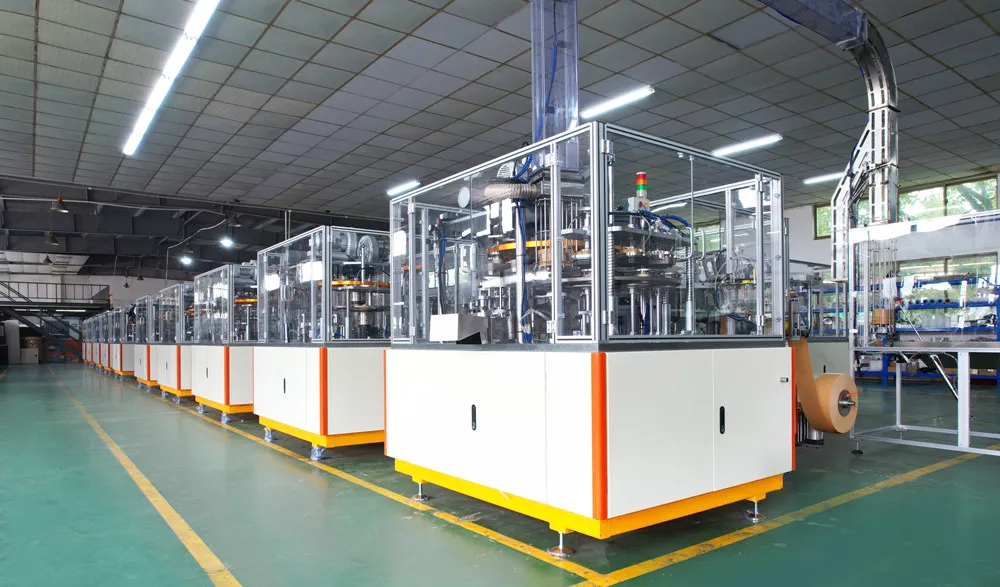

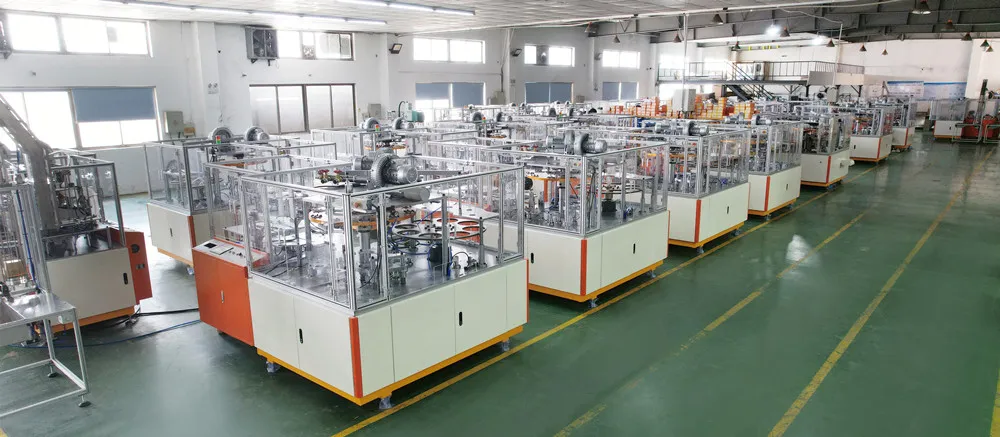

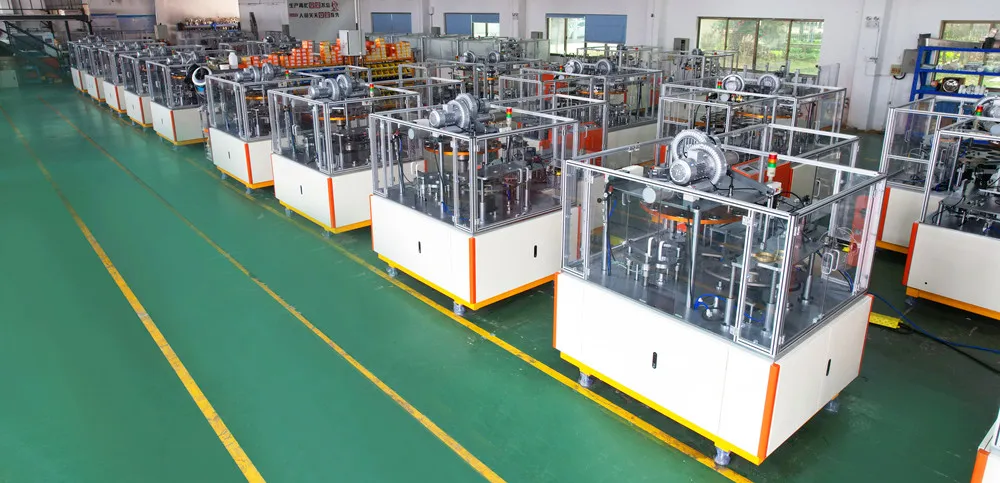

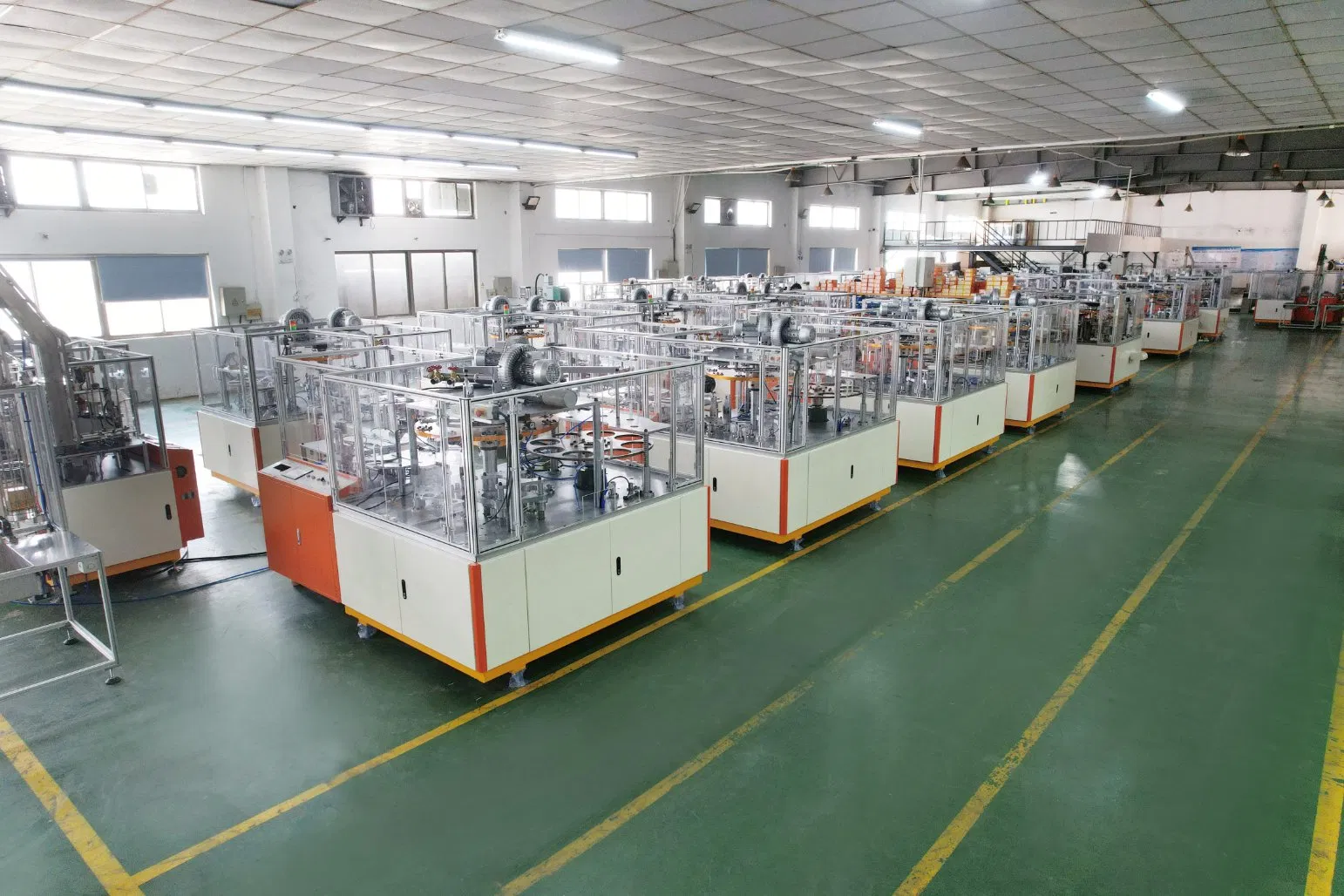

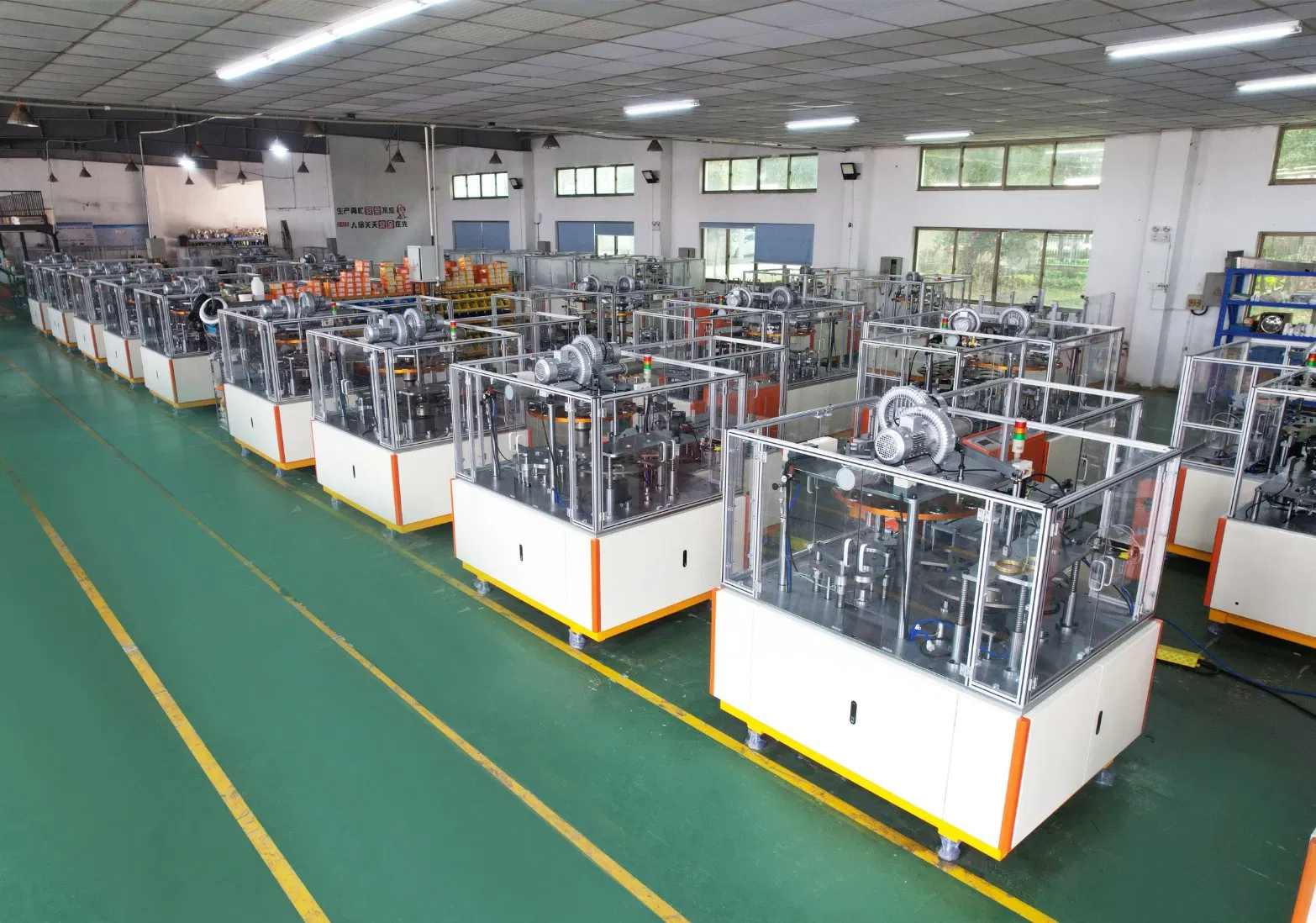

Machine Pictures

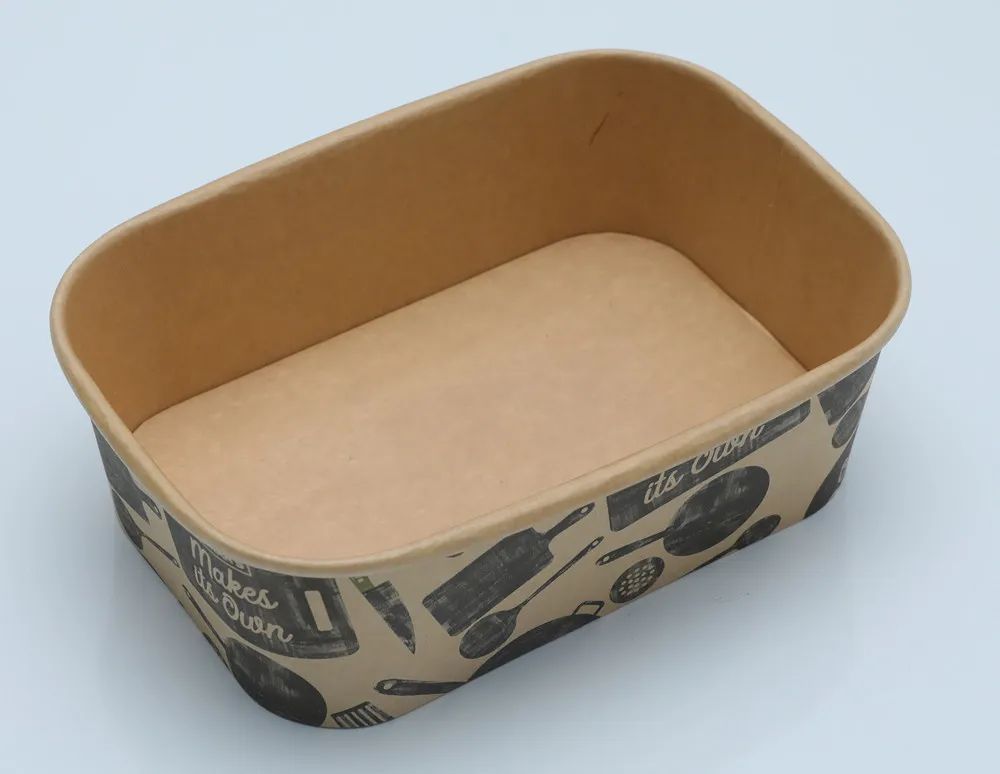

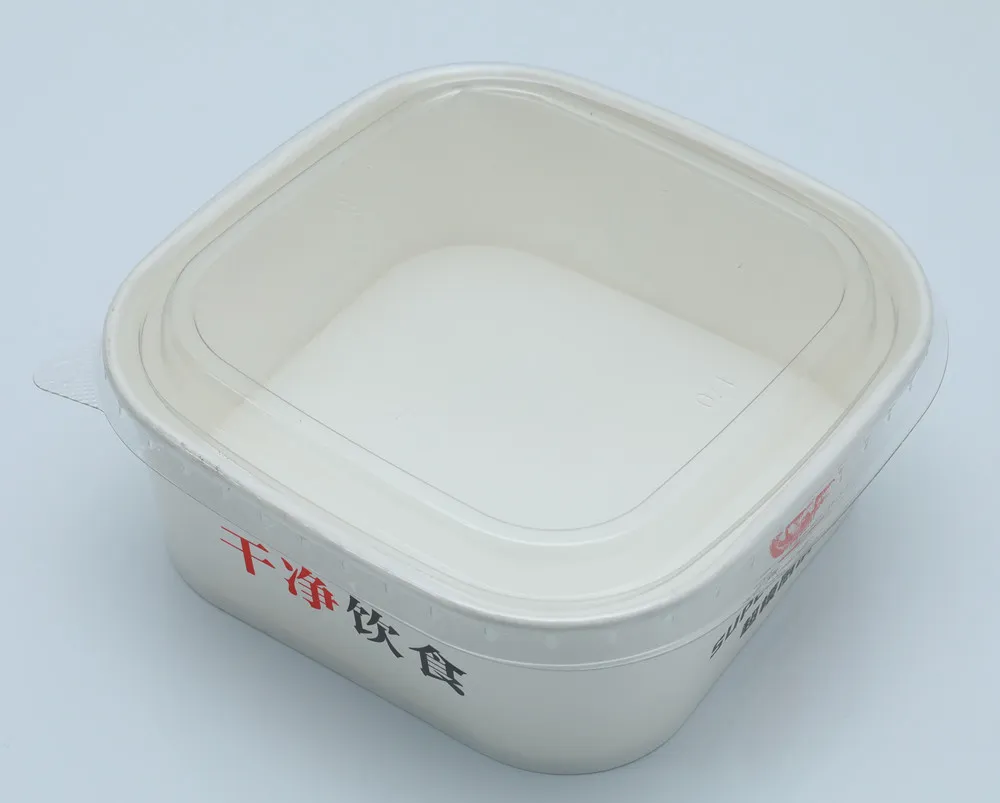

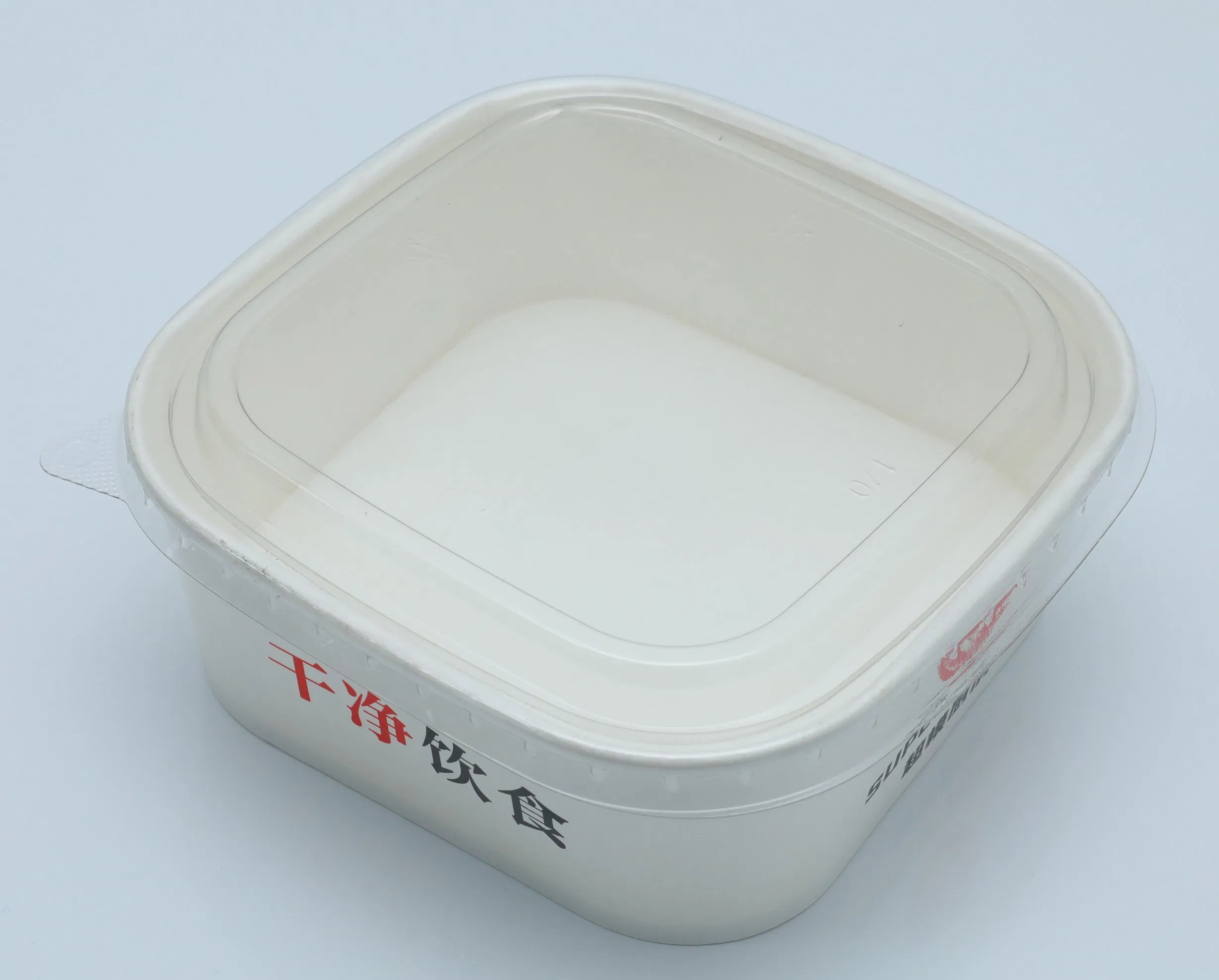

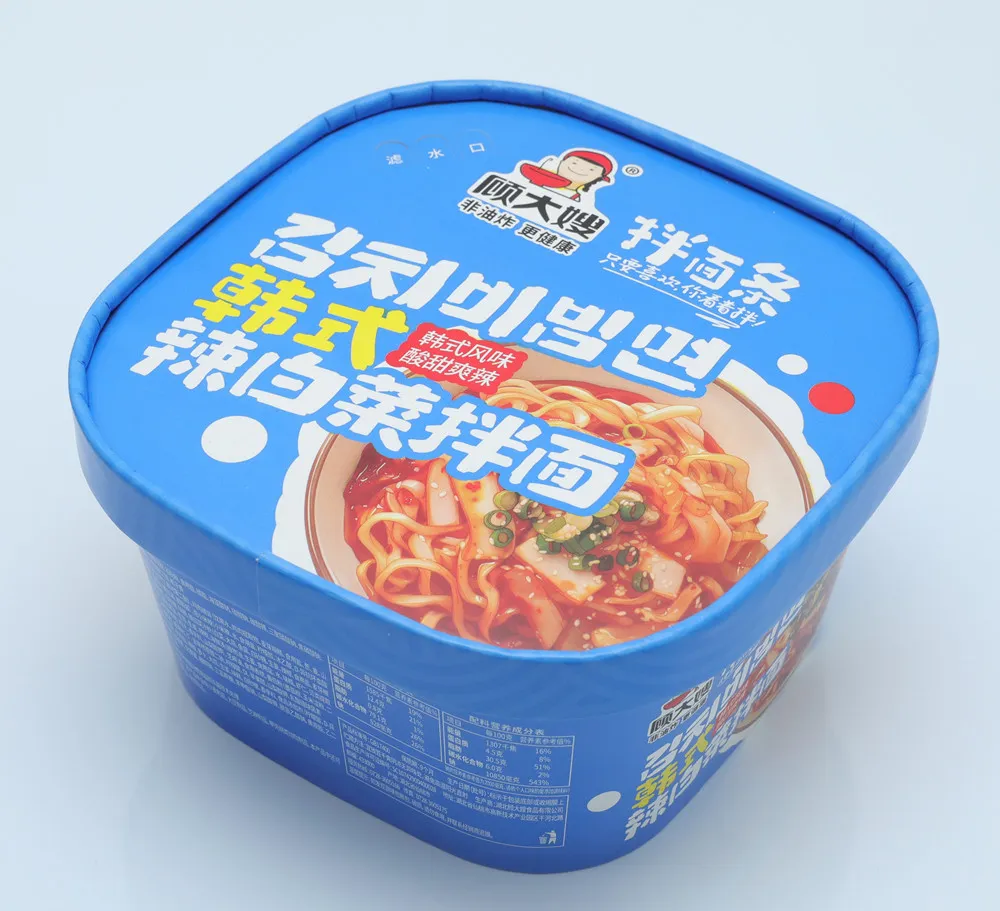

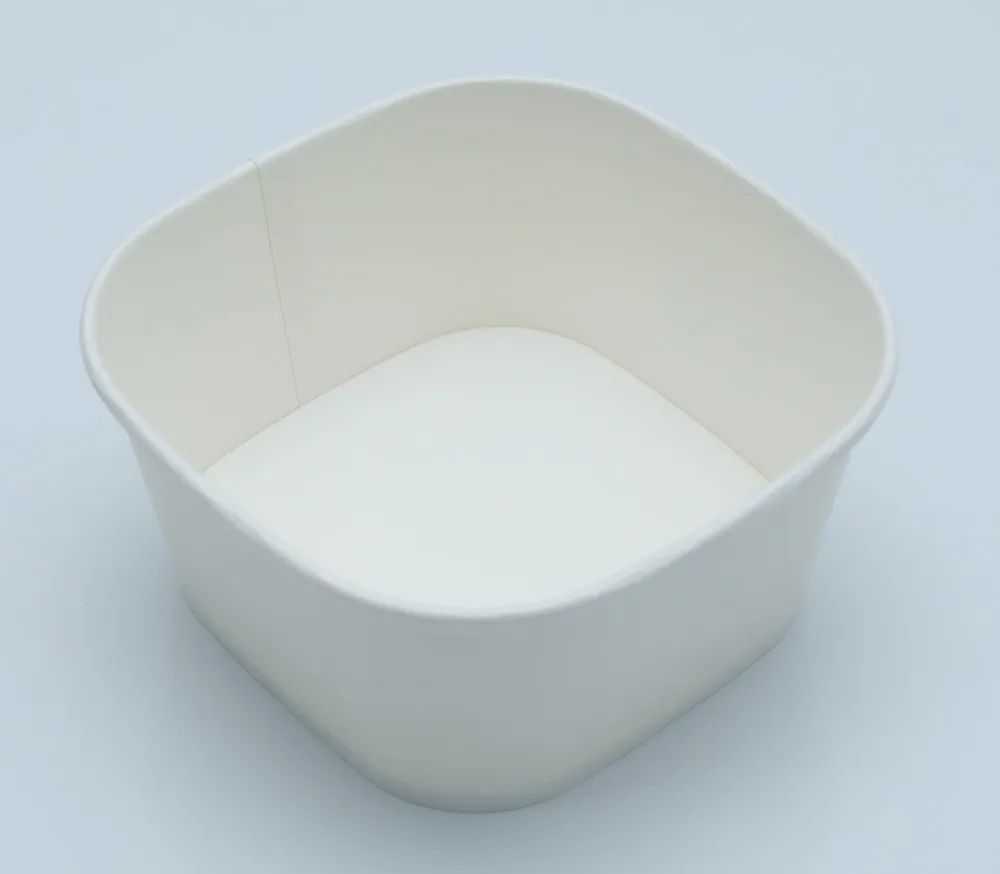

Sample Pictures

Technical Parameters

Square Cup Machine Details

Parameter	Specification
Speed	75-85 cups/min
Volume	250ml-800ml
Top Curl Diameter	70-110mm
Cup Height	60-130mm
Bottom Size	50-100mm
Angle	3.5-9°
Voltage	380V 50HZ
Average Power	9KW
Max Power	16KW
Vacuum Requirements	0.6 MPA
Weight	4000kg
Dimensions	2550mm x 1760mm x 1700mm

Square Bowl Machine Details

Parameter	Specification
Speed	65-75 cups/min
Volume	500ml-1500ml
Top Curl Diameter	120-180mm
Cup Height	60-130mm
Bottom Size	100-160mm
Angle	3.5-9°
Voltage	380V 50HZ
Average Power	10KW
Max Power	22KW
Vacuum Requirements	0.6 MPA
Weight	4500kg
Dimensions	2550mm x 1760mm x 1700mm

Packaging & Shipping

Packing: Professional export standard wooden case packaging to ensure machine safety during transit.

Service & Support

Pre-sales Service

Provide professional product and technical consultation.
Free paper cup samples (freight excluded).
Factory visits are welcome to inspect machines in operation.

After-sales Service

Machine warranty: 1 year.
Technician dispatch for installation and adjustment.
Free consumable spare parts for the first year.
Professional team providing video demonstration guidance.
First-time free engineer dispatch for installation and worker training.

Frequently Asked Questions

How is the machine price determined?

Price varies based on the mould sizes. Please provide the Two Top sizes, Height, and Two Bottom sizes of your requirements for an accurate quote.

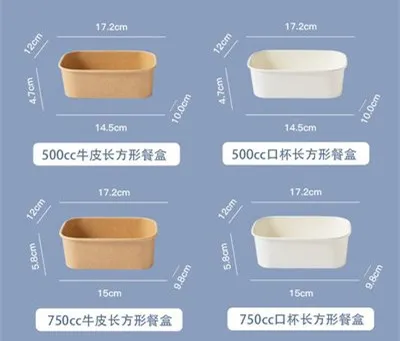

What are the standard mould size ranges?

Common top sizes include:
(a) Under 100mm * 100mm
(b) Under 135mm * 170mm
(c) Under 170mm * 170mm

What is the estimated delivery time?

The standard delivery time is approximately 3 months for one set of machine.

Do you provide installation and training?

Yes, we can send engineers to your factory to assist with installation and train your workers. For the first time, the engineer service is free, though the buyer bears the cost of food and lodging.

What is the warranty period for the machine?

We provide a 1-year warranty on our paper cup machines and supply consumable spare parts for free during the first year of use.

Can I get samples before ordering?

Yes, we provide paper cup samples for free, although the customer is responsible for the freight charges.
