Slitting Rewinding Machine for Paper Bag Handle Making Cup Bottom Paper Making

Customization:	Available
Application:	Machinery&Hardware
Type:	High-Speed Slitting Machine

Send Inquiry

Product Description

Basic Specifications

Model NO.

ZTM-A

Work Method

Round Knife Cutting

Structure

Guide Roller Part

Packaging

Case

Applicable Process

Process Materials

Suitable Substrates

Paper

Packaging Material

Wood

Usage

Paper Slitter

Width

1000-2000mm

Speed

350m/Min

Unwind Diameter

1200-1500mm

Rewind Diameter

600-1000mm

Transport Package

Wooden Package

Specification

Trademark

ZHONGTAI

Origin

China

HS Code

8479899990

Production Capacity

★

Product Description

Slitting Rewinding machine for paper bag handle making cup bottom paper making

Key Characteristics

✔ 1. The machine is mainly used to slit kinds of jumbo sticker label paper, craft paper, laminated paper, coated paper etc.

✔ 2. Entire machine is controlled by PLC (3 vector motors), man-machine interface, screen touch operation.

✔ 3. Unwinding part adopts imported pneumatic brake control, rolling diameter is automatically calculated by PLC for constant tension.

✔ 4. Traction control driven by vector variable frequency motor for constant linear velocity control.

✔ 5. Rewinding part uses vector motor with PLC automatic diameter counting and auto tension control.

✔ 6. Unwinding parts adopts pneumatic auto loader to save labor and shorten setup time.

✔ 7. Auto meter presetting and EPC error correction device to assure high accuracy.

✔ 8. Features high stability, security, and efficiency.

Technical Parameters

Max. width of roller	1000-1800mm
Max. diameter of raw material	1300mm
Max. diameter of rewinding	600-1000mm
Speed of machine	16-350m/min
Total power	12KW-30KW
Overall dimensions	3200×2500×1500mm
Weight of machine	3000KG-6000KGS

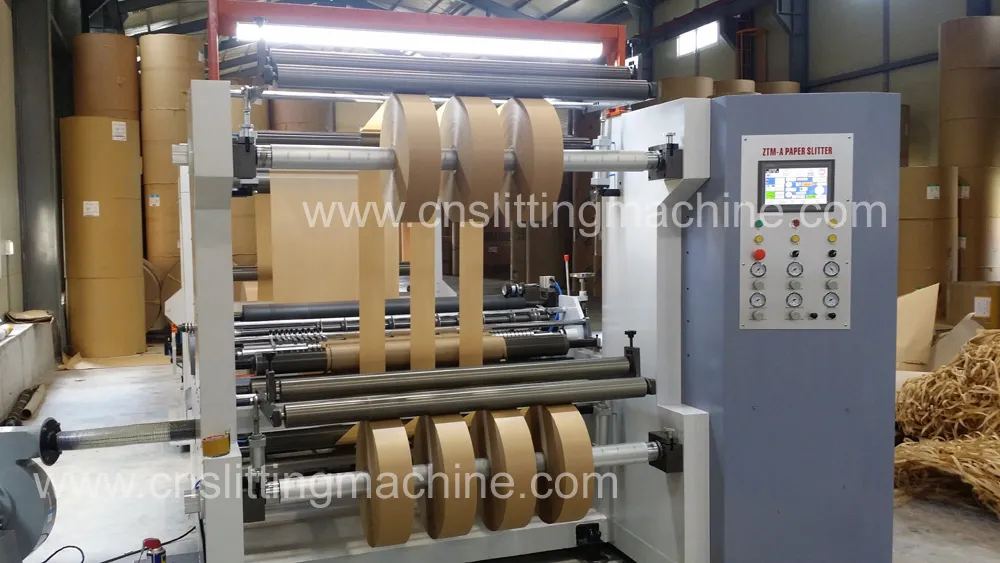

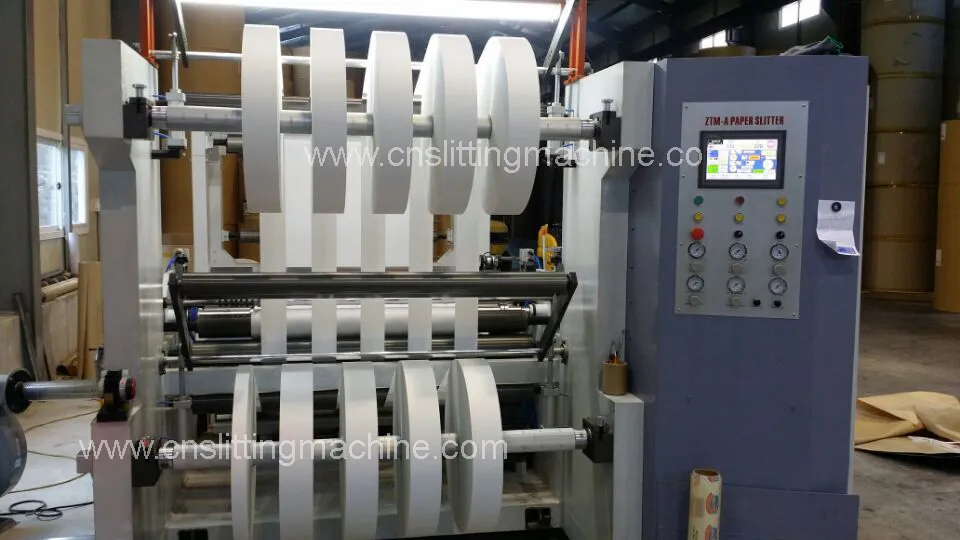

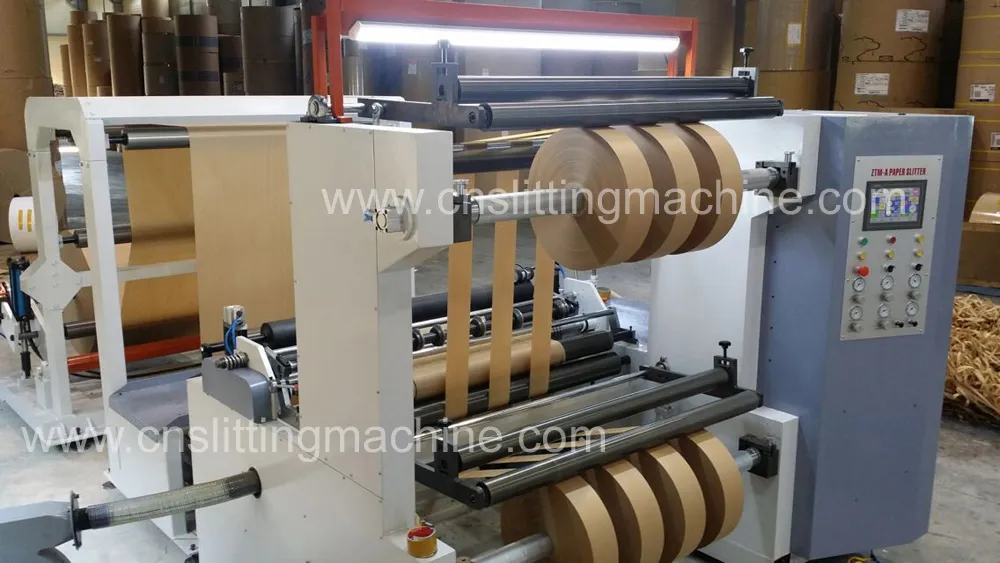

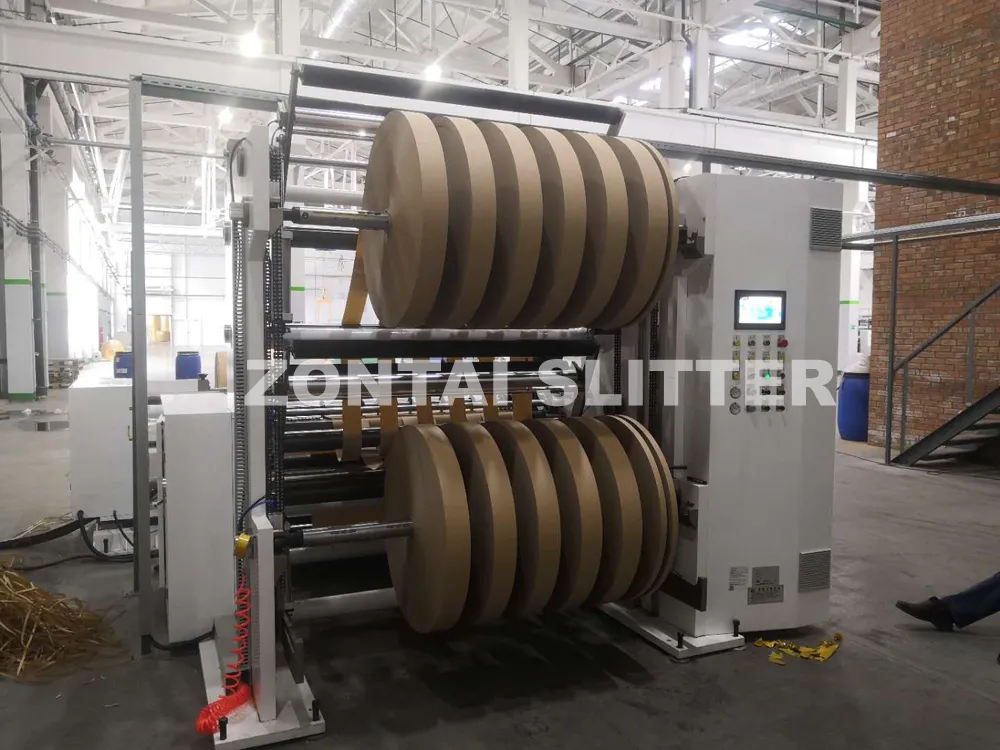

Machine Photos

Frequently Asked Questions

Q1: What materials can the ZTM-A slitting rewinding machine process?

A: It is designed for various jumbo materials including sticker label paper, craft paper, laminated paper, and coated paper, making it ideal for paper bag handles and cup bottom production.

Q2: How does the machine ensure precise tension control?

A: The machine utilizes a PLC system with three vector motors and imported pneumatic brakes. The rolling diameter is automatically calculated to maintain constant tension throughout the process.

Q3: What is the maximum operating speed of this equipment?

A: The ZTM-A model can reach a production speed of up to 350 meters per minute, depending on the material and specifications.

Q4: Does the machine include features for labor-saving?

A: Yes, it is equipped with a pneumatic auto-loader for unwinding parts, which significantly reduces manual labor and shortens material changeover time.

Q5: How is the accuracy of the slitting process maintained?

A: High accuracy is ensured through an EPC (Edge Position Control) error correction device and an automatic meter presetting system controlled via the touch screen interface.

Q6: What are the maximum diameter capacities for unwinding and rewinding?

A: The machine supports a maximum raw material (unwind) diameter of 1200-1500mm and a finished product (rewind) diameter of 600-1000mm.
