Full-Automatic High Speed Disposable Paper Plastic Cup Packing Thermal Forming Bowl Lid Cover Plate Tray Food Container Packing Making Forming Machine

Customization:	Available
After-sales Service:	Engineers Available to Service Machinery Overseas,
Warranty:	1 Year

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

TCJ-QZB750

Automatic Grade

Automatic

Application

Drinks, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning

Type

Filling and Sealing Machine

Forming Species

Bag Moulding

Forming Function

Seal

Driven Type

Electric

Material Type

Solid

Packaging

Bag

Packaging Material

Film

Transport Package

Plywood Case Packing

Production Capacity

2000 Set / Year

⚙️

Product Description

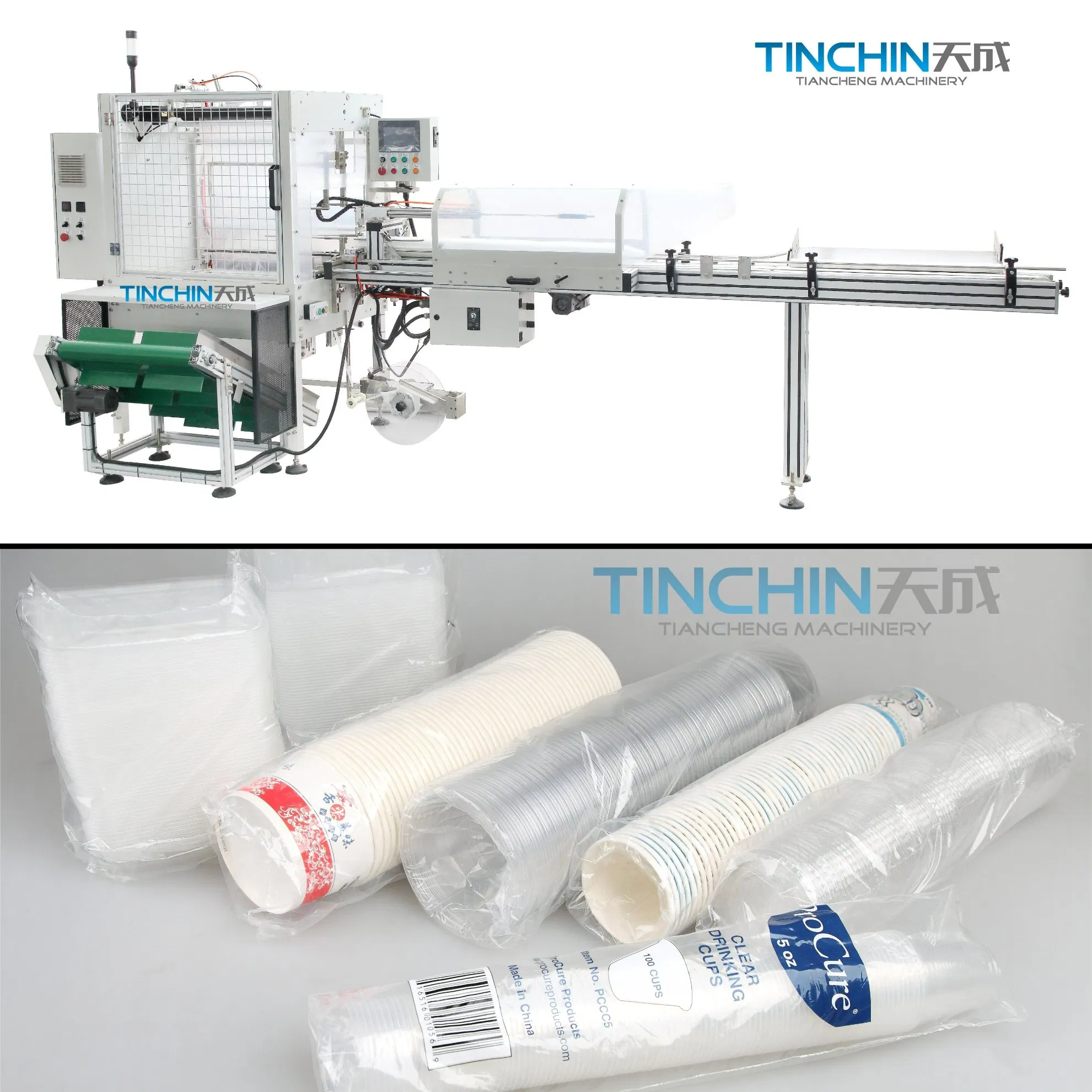

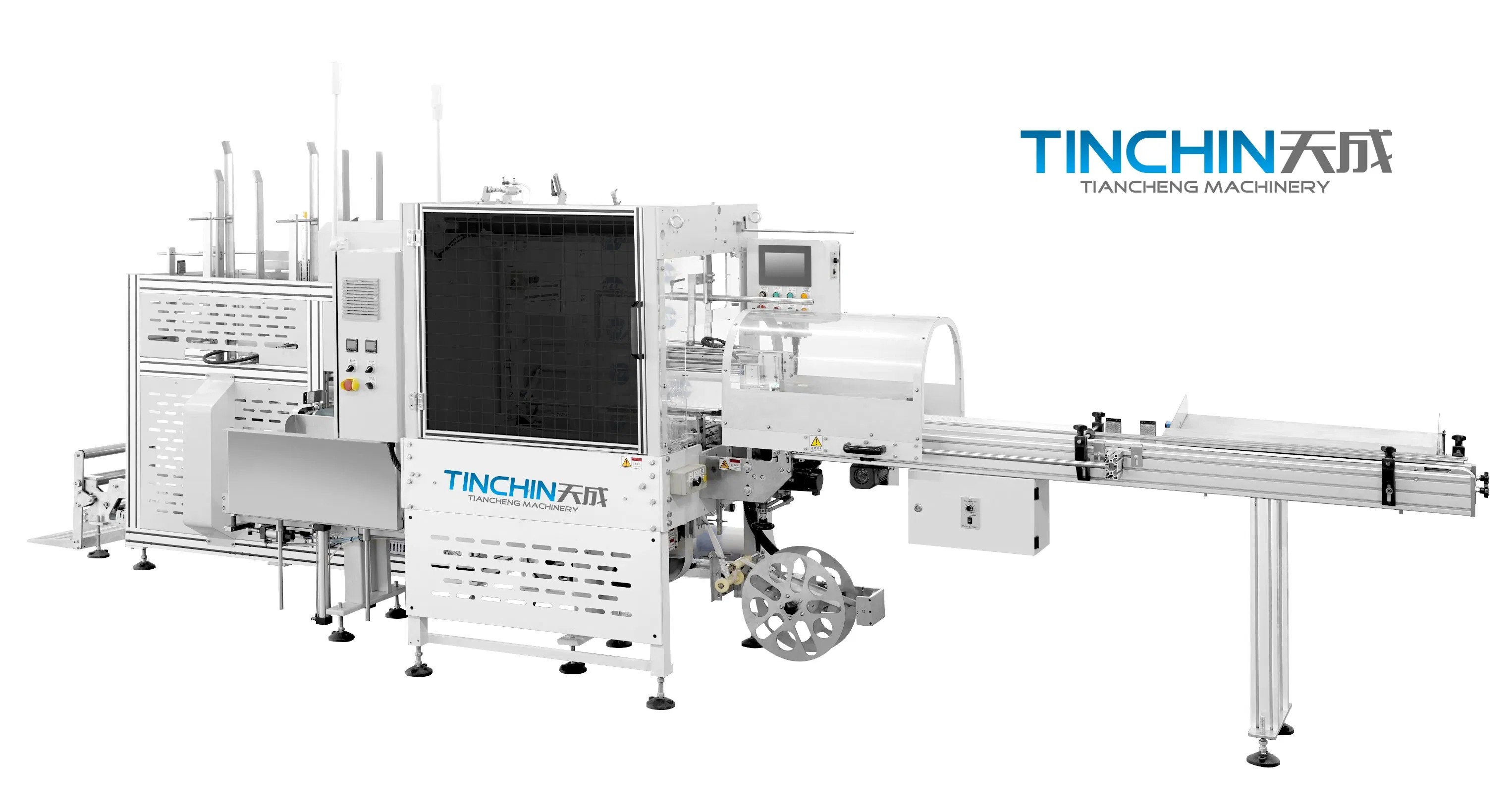

TCJ-QZB750 Full-automatic paper(plastic) cup (Bowl) packing machine

Essential equipment for modern production, replacing manual labor efficiently.
Eliminates dust and fingerprint issues common in manual handling.
Reduces labor costs and significantly saves on packaging materials.
Delivers superior aesthetic results compared to hand-bag packaging.

🌟

Key Features

Multi-functional: Automatic film feeding, air release hole punching, and color mark tracking.
Integration: Can be seamlessly integrated into full-automatic production lines with multiple cup machines.
Smart Sizing: On-line production automatically adjusts film length based on cup top diameter.
Optional Printing: Ink-jet printers can be added for production dates, models, and batch numbers.

📊

Technical Parameters

Main Machine Specifications

Parameter	Details
Model No.	TCJ-QZB750
Product Compatibility	Paper/Plastic cup, Paper/Plastic bowl
Top Diameter Range	Φ60mm-Φ95mm / Φ95mm-Φ150mm (Customizable)
Max. Stacking Length	630mm / 720mm
Packaging Material	HDPE, LDPE, PP, POF, PO
Film Thickness	12μm - 50μm
Max Speed	16 bags/min

Case Machine Specifications

Feature	Specification
Max. Packaging Speed	12 sleeves / min
Effective Cup Diameter	Φ60mm - Φ150mm
Carton Dimensions (LxWxH)	(350-500) x (240-450) x (330-600) mm
Electrical Requirement	0.8KW, Single Phase 220V 50HZ/60HZ
Air Requirement	0.6MPa

🖼️

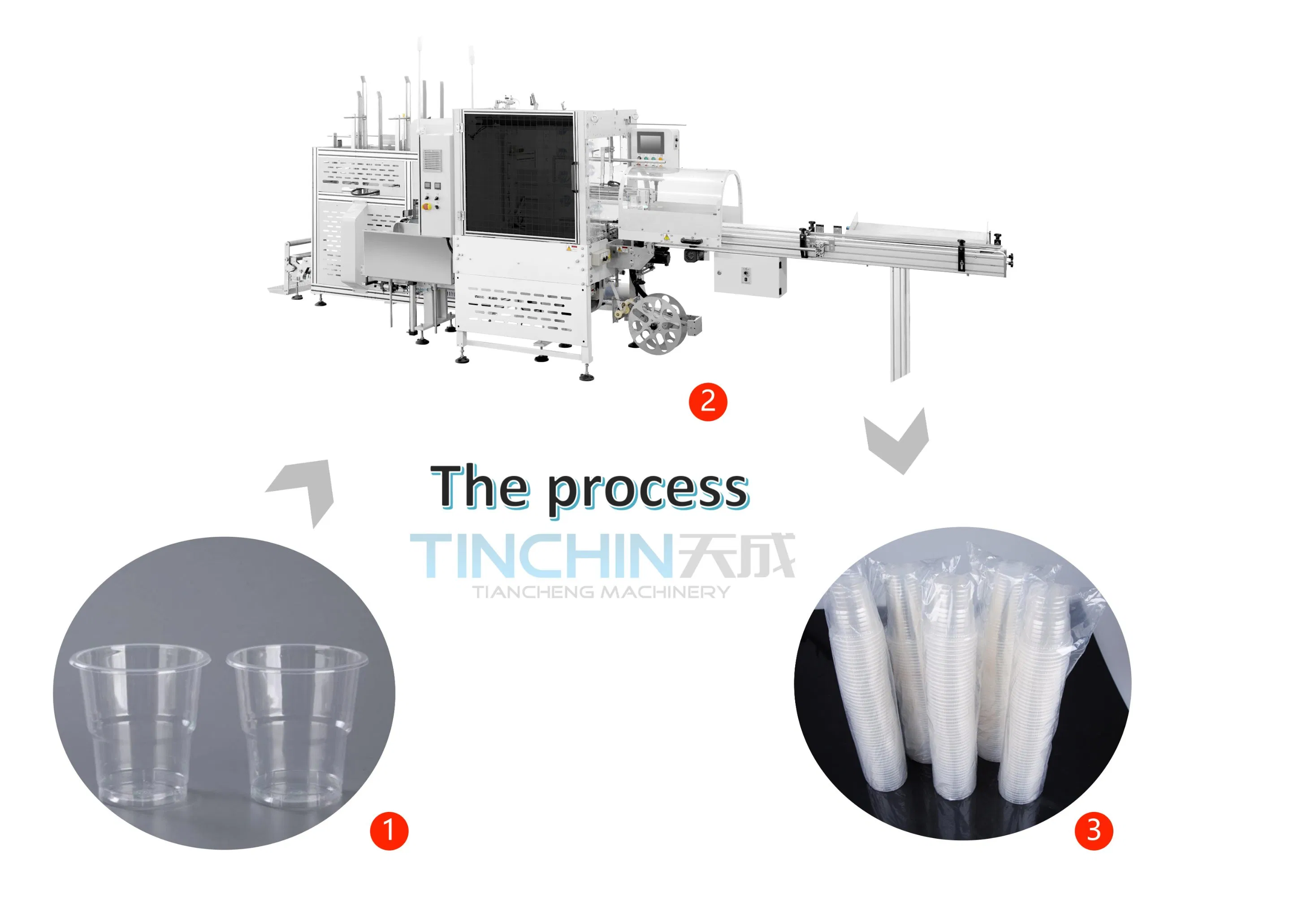

Product Gallery & Process

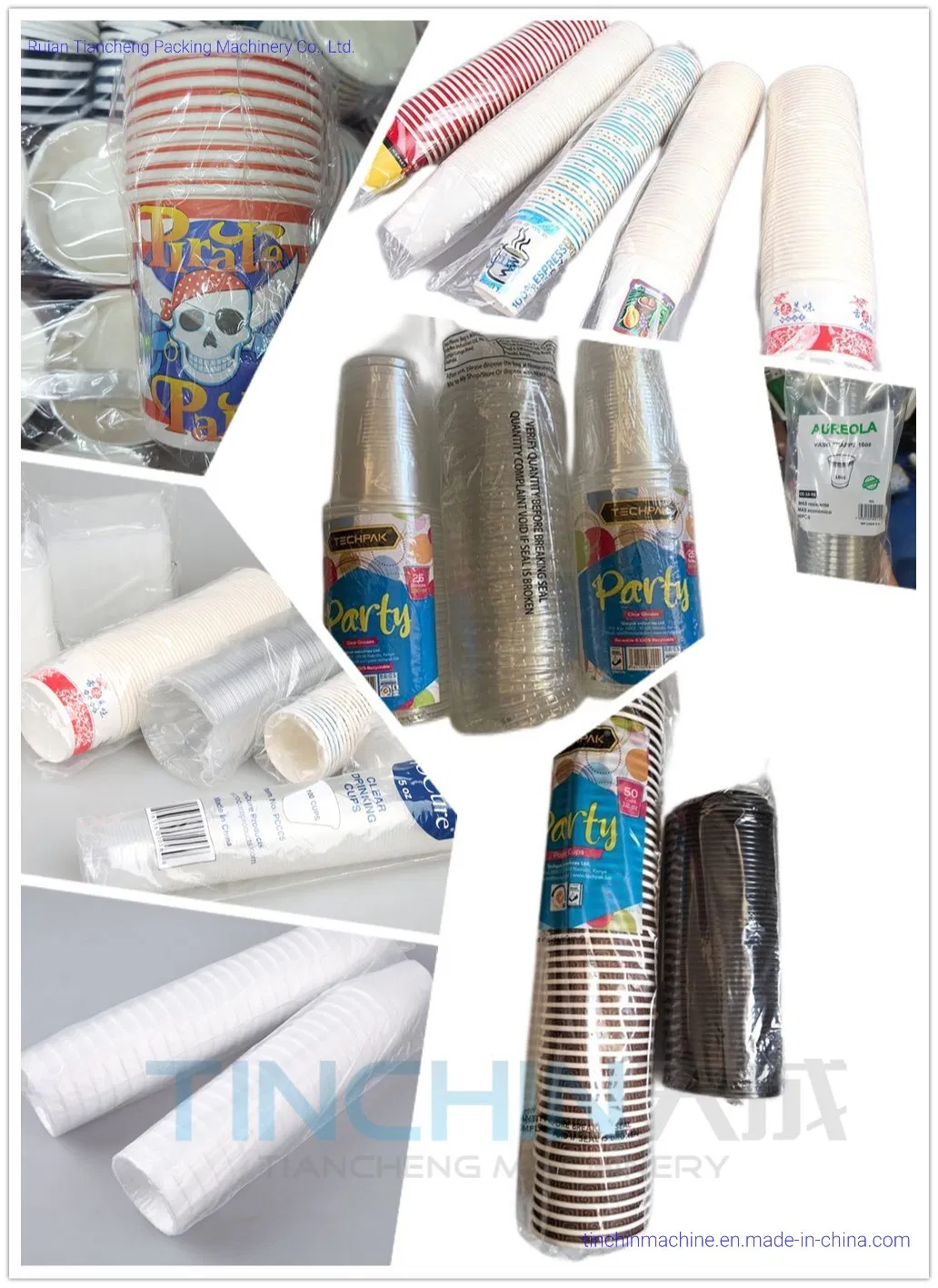

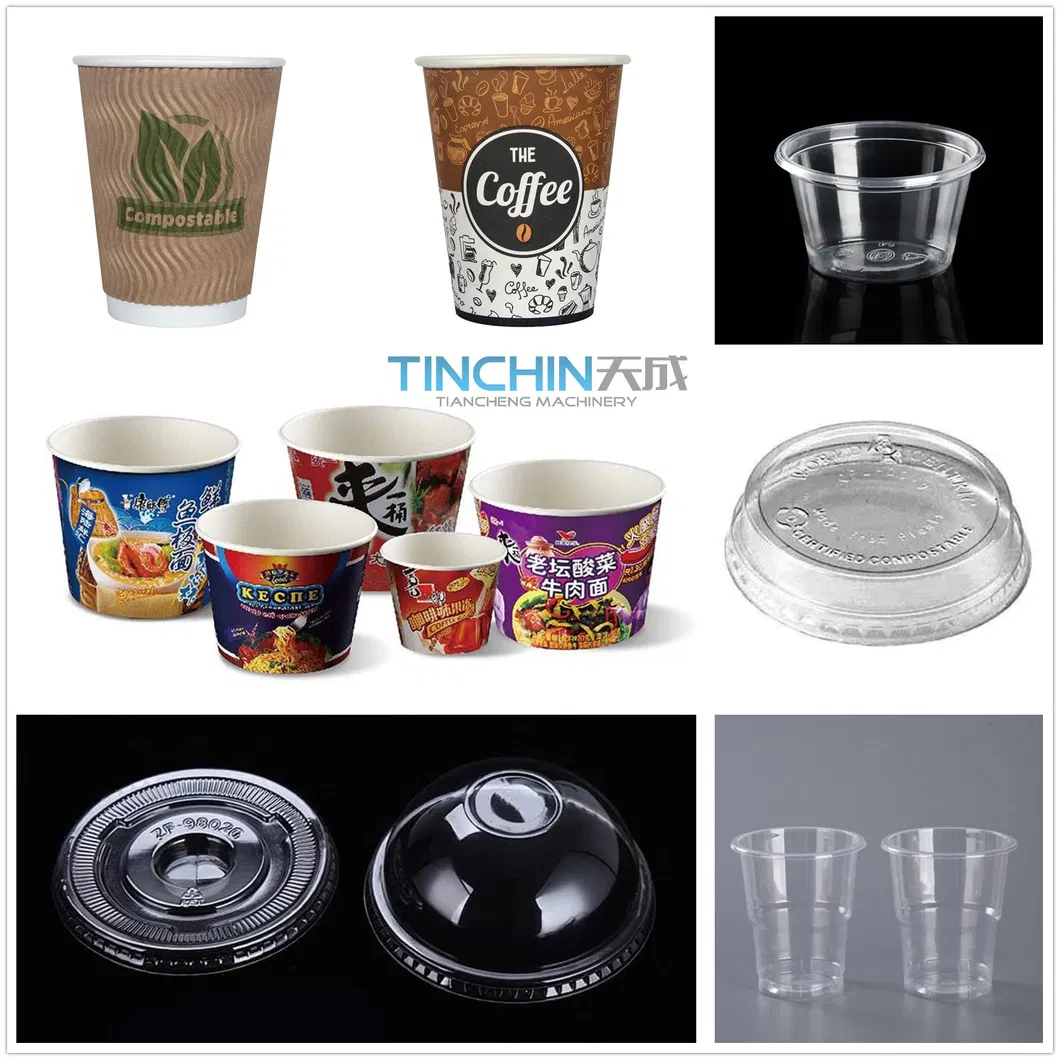

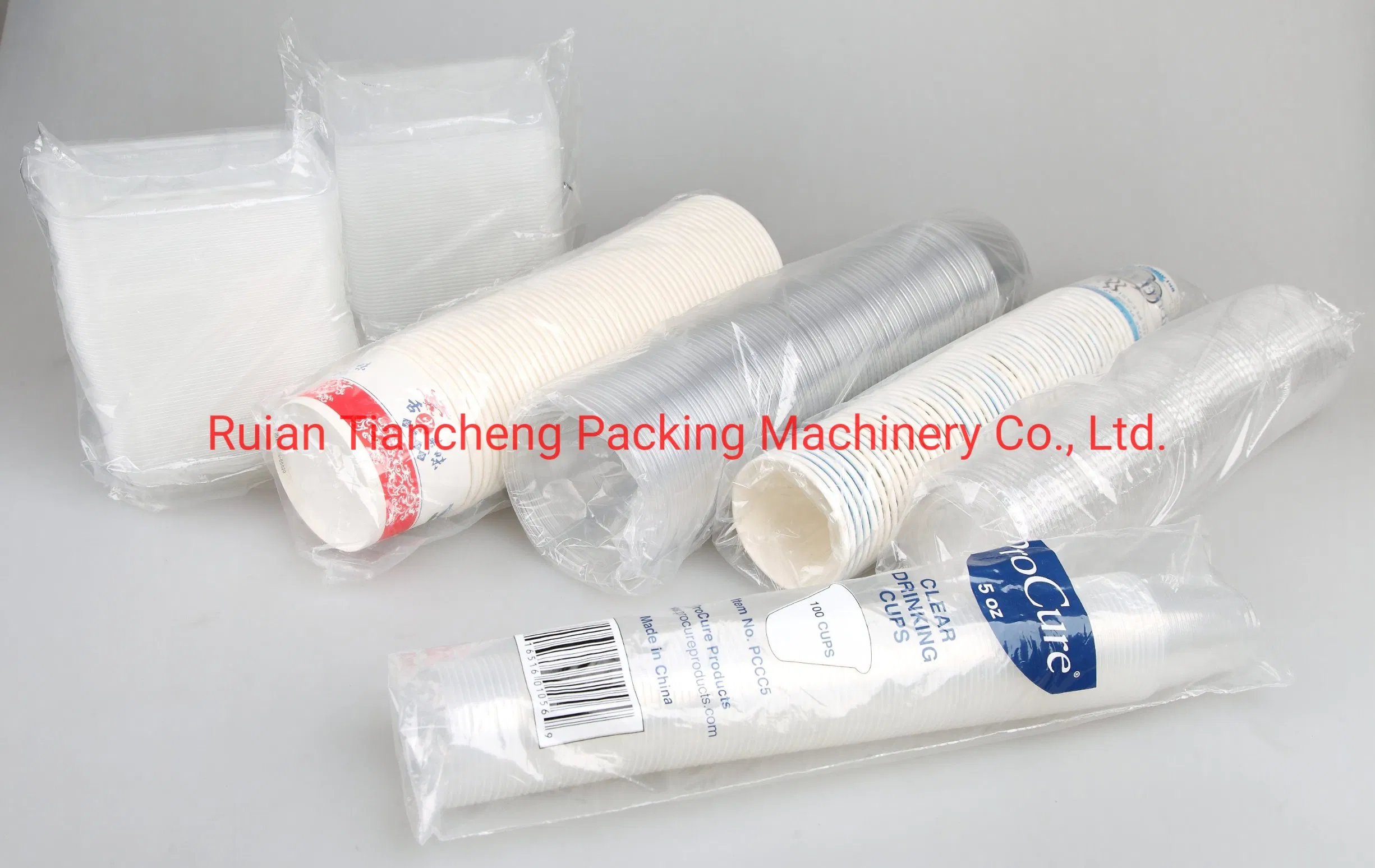

Applications & Finished Products

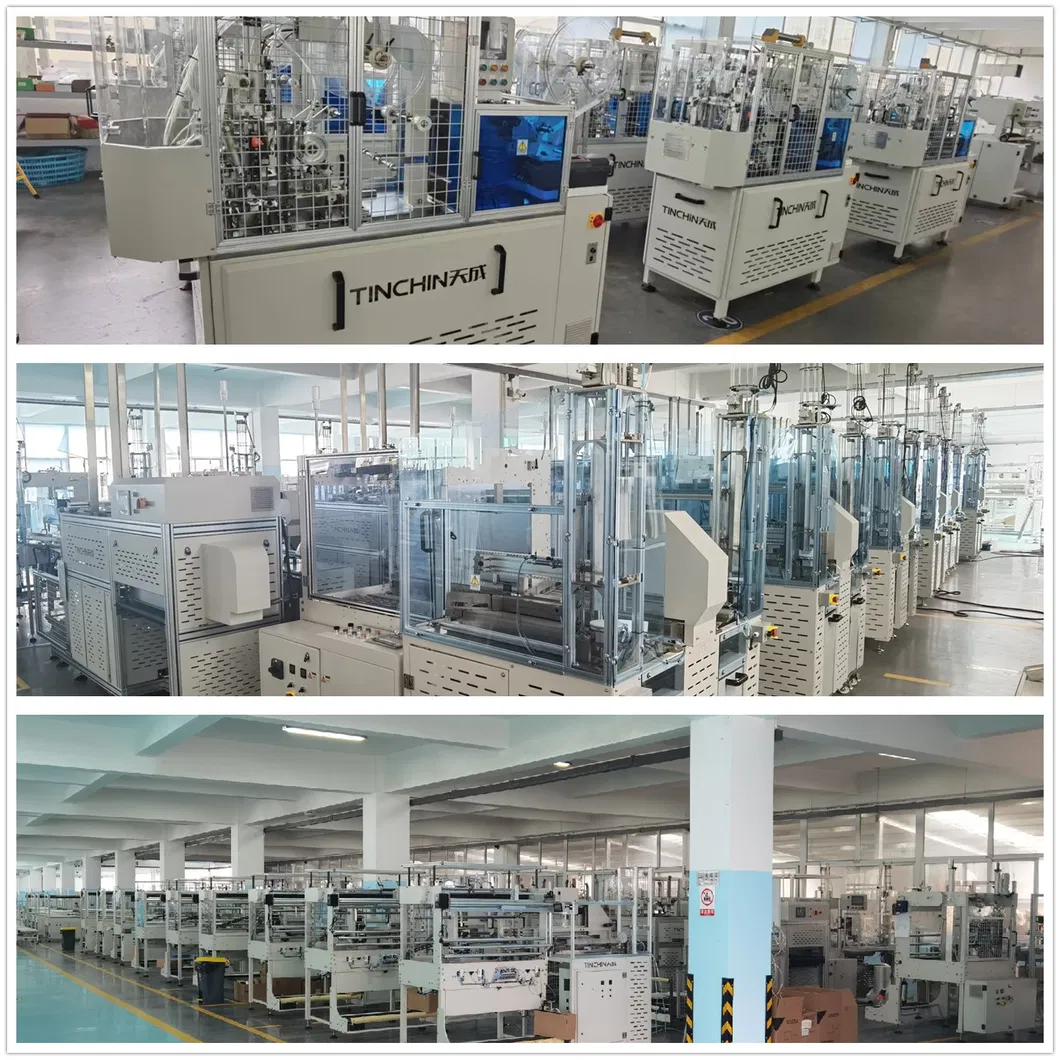

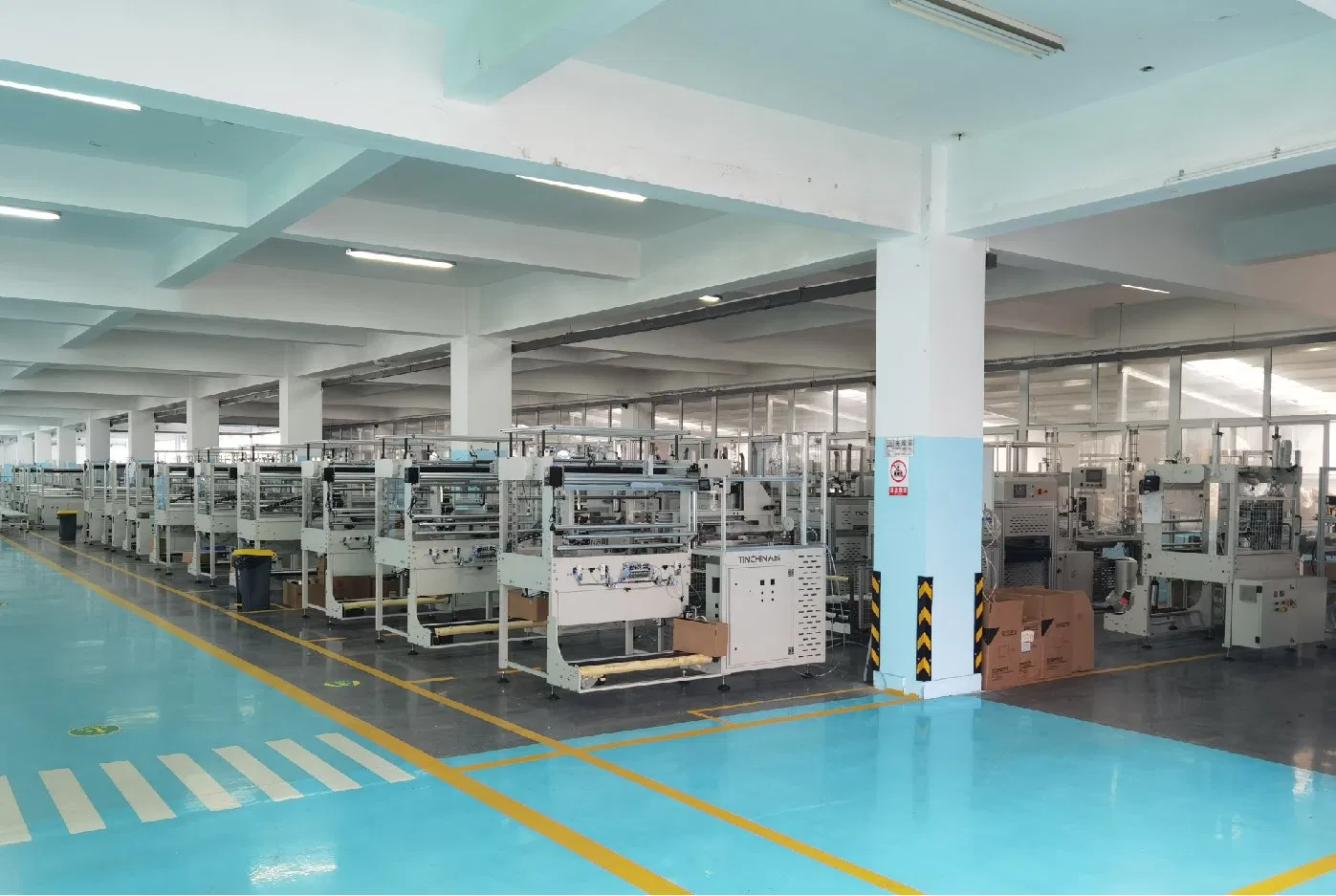

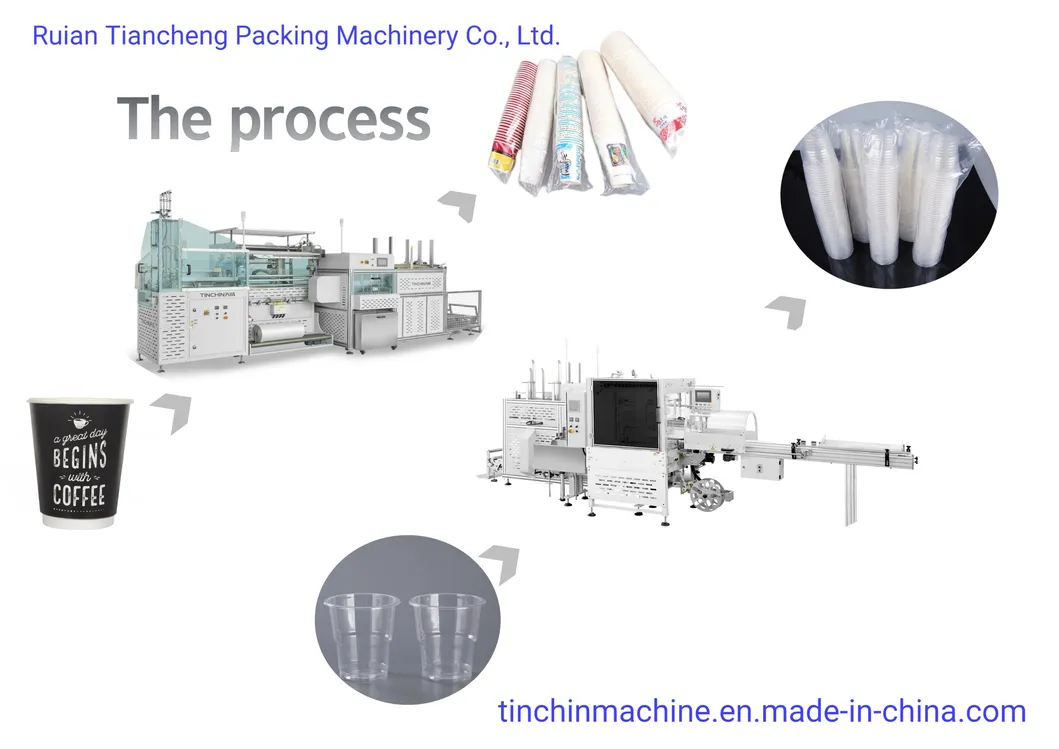

Production Process & Workshop

Certificates & Exhibition

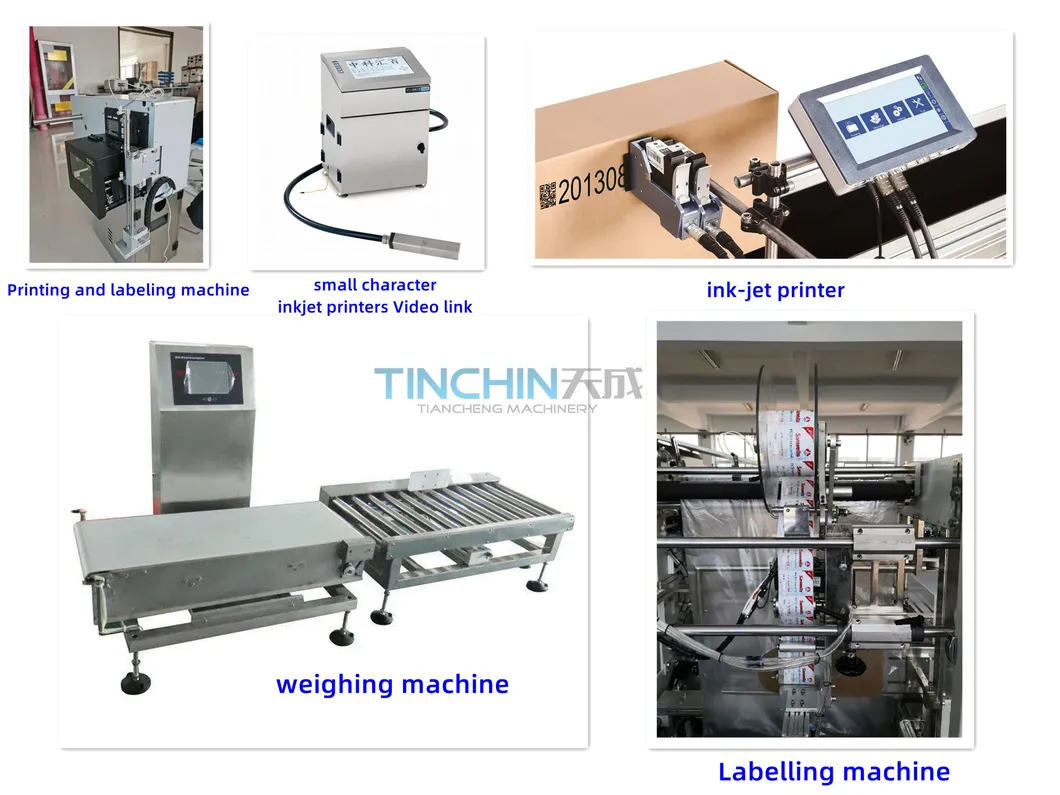

Optional Functions & Shipment

❓

Frequently Asked Questions

1. Are you a manufacturer?

Yes, we are a manufacturer specialized in this field for over 21 years, providing professional packing solutions.

2. What is the product range for cup/bowl packing?

Our machines handle tea cups, milk tea cups, coffee cups, ice cream cups, yogurt cups, sauce cups, noodle bowls, and all types of disposable lids/covers.

3. What cup or bowl sizes can the machine accommodate?

The standard range is Φ60mm-Φ95mm and Φ95mm-Φ150mm top diameter. Other sizes can be fully customized to your needs.

4. What information is required for a quotation?

Please provide the quantity, detailed dimensions (top/bottom diameter, height), and whether you require cup collection stations or case packing machines.

5. What are the advantages of your machinery?

We offer 21 years of industry experience, global customer reach, CE certification, and a rapid-response support team.

6. What after-sales services do you provide?

We offer comprehensive support including spare parts, overseas engineer services, commissioning, training, field maintenance, and video technical support.
